Steel Grating

Steel grating can meet almost any load bearing or weight requirement and is the most durable grating for rugged applications. Bar grating is a top choice for strength, safety, and long-term cost.

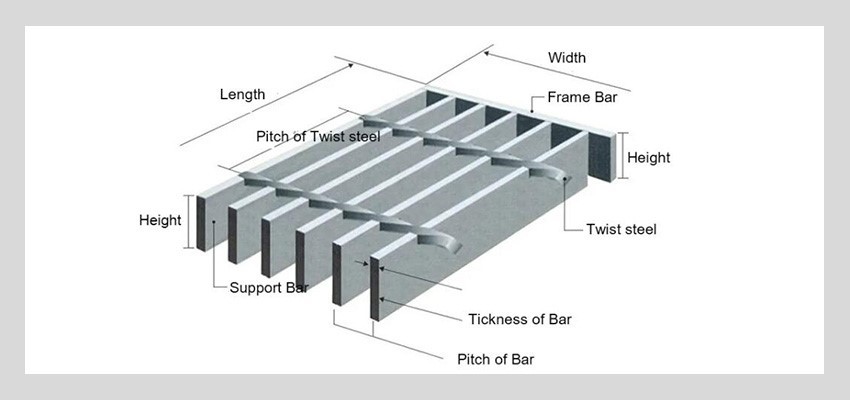

Specification

Type: W-pressure welded grating; L- pressure locked grating; C- socket welding grating

Surface: G- hot dip galvanizing,P-painting,U-untreated

Pitch of bearing bars:15-30mm, 40mm, 60mm, 80mm, 90mm etc

Pitch of cross bars:30, 38, 50, 76, 100mm etc
Shape of bearing bar:F-plain surface,S-serrated surface,I-the section is of "I" type.

Packaging:

1. Wrapped With Plastic Film Inside and outside with the woven bag.

2. Wrapped With Plastic Film Inside and outside with the hessian bag.

3. according to your requirements.

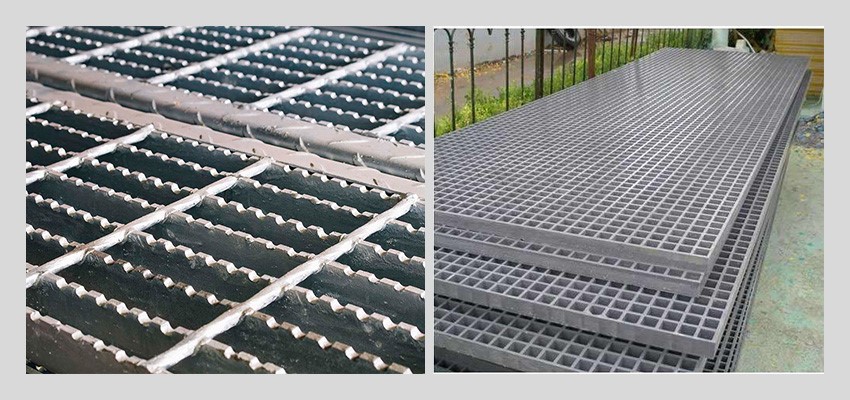

Product Types & Features

Type “W” welded steel grating is manufactured by forge welding rectangular bearing bars and drawn cross bars. This welding process provides a positive, fused connection resulting in years of service under the most demanding conditions.

Type “SL” steel gratings are manufactured by inserting hollow tube cross bars into pre-punched holes in the bearing bars. The cross bars are then hydraulically compressed to form a positive mechanical connection. The cross bars are recessed below the top surface of the bearing bars providing a uniform and attractive architectural appearance.

Type “DT” steel gratings have deep rectangular cross bars and are manufactured by inserting pre-punched bearing bars and cross bars into an “egg-crate” configuration and deforming the cross bars under intense hydraulic pressure. The deep cross bars on type “DT” gratings make them popular for architectural applications such as sunshades and infill panels with the deeper cross bar serving as a distinct architectural accent.

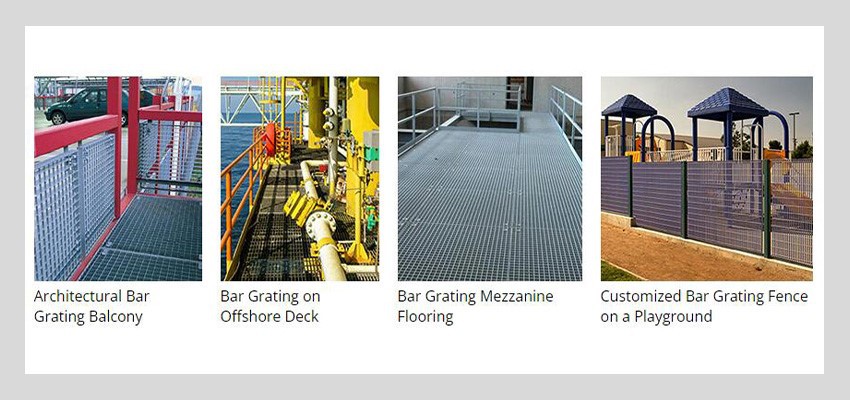

Applications

Steel bar grating has a vast amount of uses that range from flooring and stairs to bridges and sewage drain covers. It is a smart choice for flooring and stairs in work areas where slipping and falling are a major concern, such as industrial plants, wastewater treatment facilities, or manufacturing operations. The open design makes bar grating the best option for areas that require the passage of light. It also works well for projects that require fast, easy fabrication and installation.

Flooring

Stairs, stair treads, and crossover platforms

Sewage drain covers, manhole covers, forklift traffic, and loading ramps

Racks and shelving

Catwalks

Fire escapes, light guards, and loading ramps

Mezzanines and platforms

Infill panels

Vessel internals and catalyst support grids

Bridge sidewalks and bridge decking

Architectural uses like building facades or partitions

Security screens in residential and commercial buildings

How to Specify Steel Bar Grating

Select type of grating

• “W” for welded steel grating

• “DT” for dovetail pressure locked grating

• “SL” for swage locked grating

2. Select bar spacing from table above

3. Select bearing bar size (consult load tables considering service loads and clear spans)

4. Specify plain, serrated, OnGrip, or Algrip surface

5. Specify banding or additional trim required

6. Specify finish • Bare steel (no finish)

• Painted (red, black, silver, other)

• Hot dip galvanized (per ASTM A123)

• Other

7. Specify fasteners (if required)

Our Service

1. Reply you in 24 working hours.
2. Experienced staffs would like to answer all your questions in time.
3. Customized design is available. ODM&OEM are welcomed.
4. Special discount and protection of sales are provided to our consumers.
5. We can provide free sample, consumer should pay the freight first, and the expensive sample cost will be added in the next order.
6. As an honest exported seller, we always use professional factory, quality quotation, good service, skilled technicians to ensure our products to be finished in high quality and stable feature.
